LIL-A-2

object data

fabric description

archaeometry

petrography

sample no	M 169/9 representative sample for LIL-A-2
fabric type	LIL-A-2
supposed site of production	Lilibeo / Lilybaion
sample taken	July 2013, by Babette Bechtold, Soprintendenza BB.CC.AA Trapani
	Context Data
site of discovery	Lilibeo / Lilybaion Via Cicerone 1990, tomba 65
interpretation of context	funerary
registration code of context	T. 65-1, MR 9955
registration code of object	T. 65-1, MR 9955
chronology of context	350-300 B.C.E.
	Object
ware	Transport Amphorae
object form	Amphora
object type	Toti T18 / Ramón T-4.2.2.1
chronology of object	Punic-Middle Punic 390-330 B.C.E.
fragmentation	rim

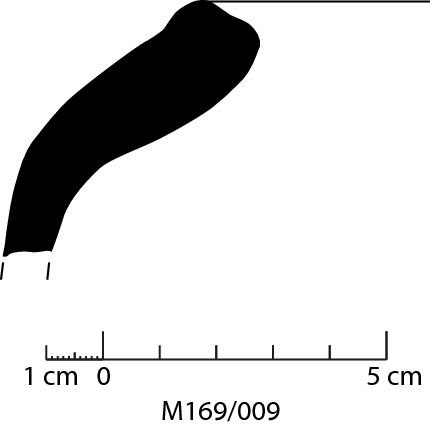

drawing
publication	Bechtold 1999, 342, pl. XXXIII,289.

object data

fabric description

archaeometry

petrography

	Visual Examination of Fresh Break
visual examination of fresh break	colour red and reddish brown, texture middle fine and compact, numerous small and sporadically large inclusions: white, grey, voids
colour of fresh break	red 10 R 5/8, light reddish brown 5 YR 6/3
texture of fresh break	irregular
hardness	hard
	Observation Under the Binocular Stereoscope (all lengths in mm)
porosity	7.5%; void form: channel, vughy; void length: 0.06 (channel), 0.08 (vughy)-1.2 (channel, vughy)
inclusions	25%, length: <0.04-0.9, 1x2.8
sorting	bimodal: poorly-sorted sand in well-sorted silt
	Inclusions (all lengths in mm)
black inclusions	infrequent, well rounded - rounded, very spherical - subspherical, black, 0.04-0.4
calciumcarbonate	frequent, rounded, very spherical - subspherical, elongate, yellowish white, white, 0.04-0.6
carbonate pseudomorphoses	frequent, rounded - subrounded, very spherical - subspherical, subelongate, yellowish white, white, 0.06-2.8
mica	infrequent, spherical, elongate, white, <0.04-0.04
quartz	very frequent, well rounded - rounded, subangular, very spherical - subspherical, elongate, grey, clear, reddish brown, 0.04-0.6
reddish inclusions	singular, very spherical, reddish brown;reddish brown, 0.48

object data

fabric description

archaeometry

petrography

applied method for sample analysis	thin section, chemical analysis
analysis author	Giuseppe Montana

object data

fabric description

archaeometry

petrography

sample number	M 169/9
inventory number	Via Cicerone 1990, T. 65-1
name of author	Giuseppe Montana - Luciana Randazzo
institution of author	Department of Earth and Marine Sciences (DiSTeM) - University of Palermo
contact information of author	giuseppe.montana@unipa.it; luciana.randazzo@unipa.it
	Temper Grains
	Microstructure
areal distribution	moderately homogeneous
packing (% area)	very high (>30%)
size/granulometry (mm)	prevalent: medium (0.2-0.5mm) common: very fine (0.04-0.1mm), fine (0.1-0.2mm)
maximum grain size (mm)	0.4 mm
sorting	scarce-serial
roundness	angular
	Composition
minerals	prevalent: Monocrystalline Quartz common: Polycrystalline Quartz sporadic: Orthoclase, Plagioclase rare: Muscovite
rock fragments	sporadic: Sedimentary (Sandstone, Chert)
other compositional/textural features	common: Microfossils, Micritic Clots
quartz grains	angular
	Groundmass
	Texture
texture	moderately homogeneous patchy: common
optical activity	inactive
color (plane polarized light)	brownish
degree of sintering	well sintered
	Porosity
voids/pores abundance (area)	medium (10-30%)
voids/pores size	prevalent: small (0.01-0.1mm), medium (0.1-1mm)
voids/pores orientation	full
voids/pores shape	prevalent: cast, channels
	Clay Composition
clay composition	ca-rich
	Estimations from Microscopy/Interpretation
	Interpretation
firing temperature	well fired
refinement of raw clay	acceptable
refinement of temper/clasts	sieved natural sand
modelling technique/fabrication	use of wheel
