SEL-C-1

object data

fabric description

archaeometry

petrography

sample no	M 184/2 representative sample for SEL-C-1
fabric type	SEL-C-1
supposed site of production	Selinunte / Selinus
sample taken	March 2013, by Pisciotta, Institute of Fine Arts, New York University
	Context Data
site of discovery	Selinunte / Selinus Temple B
interpretation of context	sacred
registration code of context	saggio H, US 3
registration code of object	saggio H, US 3, P09.241
chronology of context	310-290 B.C.E.
	Object
ware	Coarse Wares
object form	Mortar
chronology of object	400-250 B.C.E.
fragmentation	rim
dimensions	diameter: 41cm (rim)

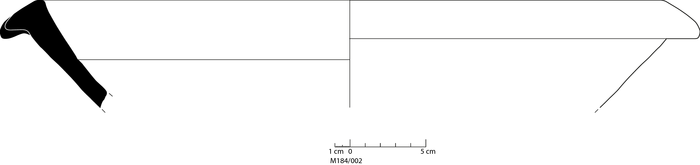

drawing

object data

fabric description

archaeometry

petrography

	Visual Examination of Fresh Break
visual examination of fresh break	colour light red, texture middle fine, numerous small and few large inclusions: white, yellowish white, red, voids
colour of fresh break	light red 2.5 YR 7/6
texture of fresh break	granular
hardness	hard

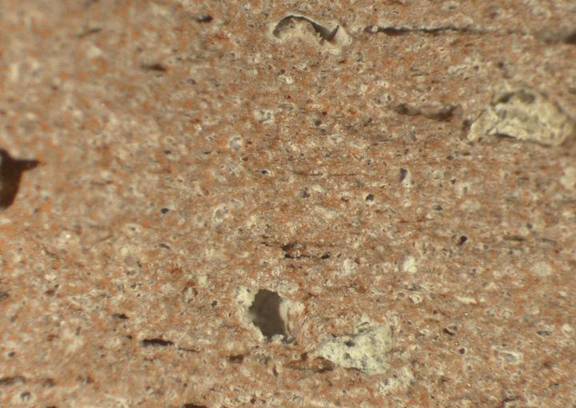

	Observation Under the Binocular Stereoscope (all lengths in mm)
porosity	12.5%; void form: vughy, channel; void length: 0.04 (vughy), 0.06 (channel)-1.1, 1x 6.8 (vughy), 1.0 (channel)
inclusions	17.5%, length: <0.04-2.2
sorting	moderately sorted sand
	Inclusions (all lengths in mm)
black inclusions	singular, rounded, very spherical - subspheical, elongate, black, <0.04-0.1
calciumcarbonate	riddled with, rounded, very spherical - subspherical, elongate, yellowish white, white, <0.04-0.5
carbonate pseudomorphoses	riddled with, very spherical - subspherical, subelongate, yellowish white, white, <0.04-0.8
mica	infrequent, spherical, elongate, white, <0.04-0.06
quartz	very frequent, well rounded - rounded, subangular, very spherical - subspherical, elongate, grey, clear, <0.04-0.2
reddish inclusions	very frequent, rounded, very spherical - subspherical, elongate - subelongate, red, reddish brown, <0.04-0.4
white inclusions	frequent, subspherical, white, pale brown, pale red, 0.2-2.2

object data

fabric description

archaeometry

petrography

applied method for sample analysis	thin section, chemical analysis
analysis author	Giuseppe Montana
publication (of analysis)	Montana et al. 2024, 4, tab. 1, fig. 6g; Montana and Randazzo 2015, 143, tab. 14;

object data

fabric description

archaeometry

petrography

sample number	M 184/2
inventory number	Temple B, saggio H, US 3, P09.241
name of author	Giuseppe Montana - Luciana Randazzo
institution of author	Department of Earth and Marine Sciences (DiSTeM) - University of Palermo
contact information of author	giuseppe.montana@unipa.it; luciana.randazzo@unipa.it

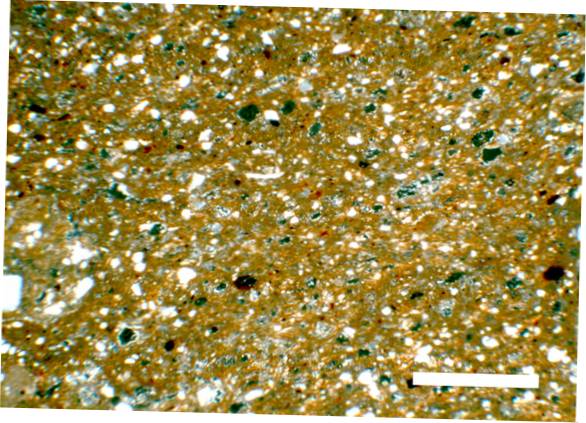

	Temper Grains
	Microstructure
areal distribution	moderately homogeneous
packing (% area)	medium (10-20%)
size/granulometry (mm)	prevalent: very fine (0.04-0.1mm), fine (0.1-0.2mm)
maximum grain size (mm)	0.3 mm
sorting	scarce-bimodal
roundness	sub-angular
	Composition
minerals	prevalent: Monocrystalline Quartz common: Polycrystalline Quartz sporadic: Orthoclase rare: Muscovite
rock fragments	common: Sedimentary (Sandstone)
other compositional/textural features	common: Microfossils, Micritic Clots
quartz grains	sub-angular
	Groundmass
	Texture
texture	moderately homogeneous patchy: sporadic
optical activity	inactive
color (plane polarized light)	brownish-black
degree of sintering	poorly sintered
	Porosity
voids/pores abundance (area)	medium (10-30%)
voids/pores size	prevalent: small (0.01-0.1mm)
voids/pores orientation	none
voids/pores shape	prevalent: irregular
	Newly Formed Phases
newly formed phases	frequent: secondary calcite
	Clay Composition
clay composition	ca-rich
	Estimations from Microscopy/Interpretation
	Interpretation
firing temperature	low fired
refinement of raw clay	acceptable
refinement of temper/clasts	sieved natural sand
modelling technique/fabrication	use of wheel
