MOT-A-1

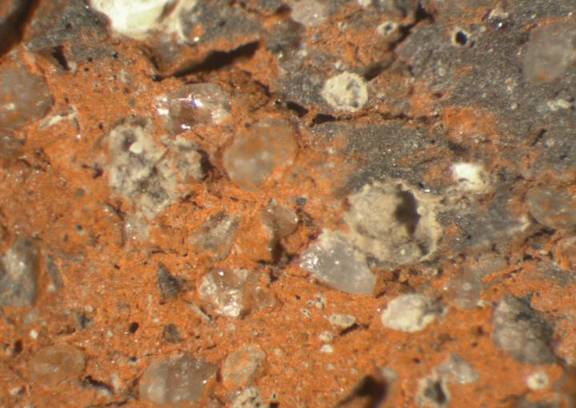

MOT-A-1, M 119/45, 25x

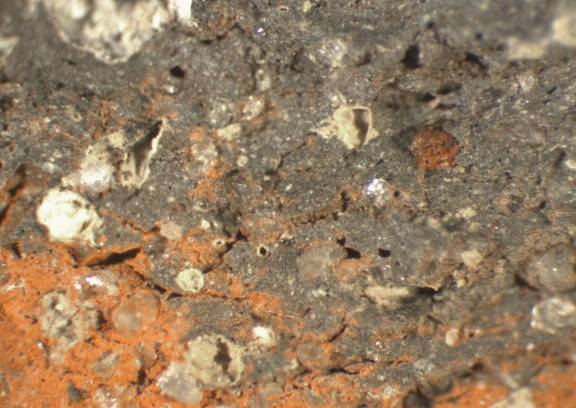

MOT-A-1, M 119/45, 16x

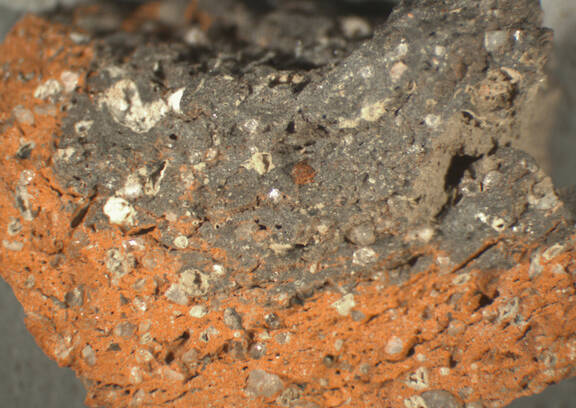

MOT-A-1, M 119/45, 8x

object data

fabric description

archaeometry

petrography

sample no	M 119/45
fabric type	MOT-A-1
supposed site of production	Mozia / Motya
sample taken	2010, by Babette Bechtold, Institute of Classical Archaeology, University of Tübingen
	Context Data
site of discovery	Pantelleria Acropolis-Survey
interpretation of context	funerary
registration code of context	PN 04 ACR RIC UT 73.1
registration code of object	PN 04 ACR RIC UT 73.1-1
	Object
ware	Transport Amphorae
object form	Amphora
object type	Ramon T-1.4.2.1/Toti 6
chronology of object	Punic-Early Punic 600-500 B.C.E.
fragmentation	rim

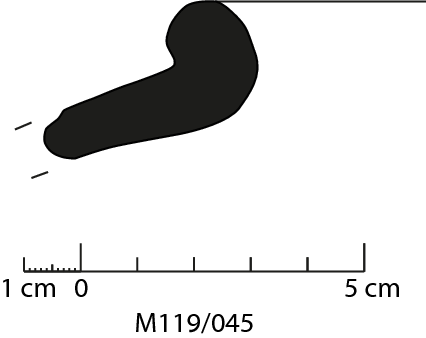

drawing
publication	Bechtold 2013a, 476, cat. 62, pls. 30, 90,6.

	Visual Examination of Fresh Break
visual examination of fresh break	colour red, core dark grey, texture coarse, numerous small to large inclusions: grey, white, red, voids
colour of fresh break	red 10 R 5/8, core dark reddish grey 10 R 4/1
texture of fresh break	granular
hardness	hard
	Observation Under the Binocular Stereoscope (all lengths in mm)
porosity	10%; void form: channel, voids; void length: 0.04-1.1 (channel), 2.6 (vughy)
inclusions	20%, length: <0.04-1.3
sorting	bimodal: poorly-sorted sand in well-sorted silt
	Inclusions (all lengths in mm)
black inclusions	infrequent, rounded, spherical - subspherical, black, 0.04-0.4
calciumcarbonate	very frequent, well rounded - rounded, very spherical - subspherical, elongate, yellowish white, white, <0.04-0.72
carbonate pseudomorphoses	very frequent, rounded - subrounded, very spherical - subspherical, subelongate, yellowish white, white, 0.04-1.3
mica	infrequent, spherical, elongate, white, dark, <0.04-0.12
more inclusions2	frequent, orange
quartz	very frequent, well rounded - rounded, subangular - angular, very spherical - subspherical, grey, clear, 0.06-0.8
reddish inclusions	singular, rounded, spherical, reddish brown;reddish brown, 0.04-0.52

applied method for sample analysis	thin section, chemical analysis
analysis author	Giuseppe Montana

object data

fabric description

archaeometry

petrography

sample number	M 119/45
inventory number	PN 04 ACR RIC, UT 73.1-1
name of author	Giuseppe Montana - Luciana Randazzo
institution of author	Department of Earth and Marine Sciences (DiSTeM) - University of Palermo
contact information of author	giuseppe.montana@unipa.it; luciana.randazzo@unipa.it
	Temper Grains
	Microstructure
areal distribution	moderately homogeneous
packing (% area)	medium (10-20%)
size/granulometry (mm)	prevalent: very fine (0.04-0.1mm), medium (0.2-0.5mm) rare: coarse (0.5-2mm)
maximum grain size (mm)	0.9
sorting	scarce-bimodal
roundness	sub-rounded
	Composition
minerals	prevalent: Monocrystalline Quartz common: Polycrystalline Quartz sporadic: Orthoclase
rock fragments	sporadic: Sedimentary (Sandstone)
quartz grains	sub-rounded
	Groundmass
	Texture
texture	moderately homogeneous patchy: rare
optical activity	inactive
color (plane polarized light)	black
degree of sintering	well sintered
	Porosity
voids/pores abundance (area)	medium (10-30%)
voids/pores size	prevalent: large (>1mm)
voids/pores orientation	partial
voids/pores shape	prevalent: cast, channels
	Clay Composition
clay composition	ca-poor
	Estimations from Microscopy/Interpretation
	Interpretation
firing temperature	well fired
refinement of raw clay	acceptable
refinement of temper/clasts	sieved natural sand
modelling technique/fabrication	use of wheel

Cite this page as: FACEM - http://facem.at/m-119-45

Distribution of fabric type
“MOT-A-1”

Himera Pantelleria Selinunte / Selinus Selinunte / Selinus Himera Himera Himera Himera Mozia / Motya Mozia / Motya Mozia / Motya Mozia / Motya Mozia / Motya Mozia / Motya Mozia / Motya Mozia / Motya

production discovery

Representative sample for
“MOT-A-1”

M 179/8

There are 7 more samples assigned to fabric type
“MOT-A-1”.
