FACEM
Provenance Studies on Ancient Pottery in the Mediterranean

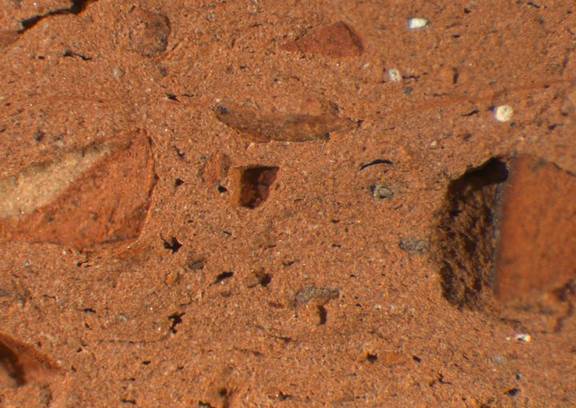

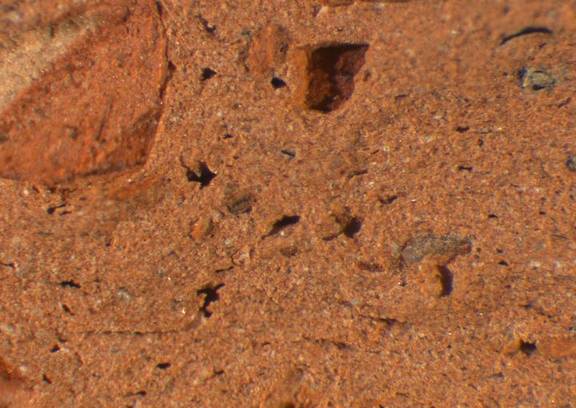

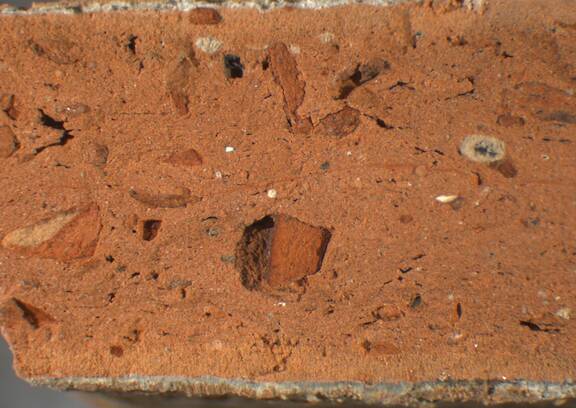

HIM-OD-1, M 111/23, scale bar 0.2mm
HIM-OD-1, M 111/23, scale bar 0.5mm
HIM-OD-1, M 111/23, 25x
HIM-OD-1, M 111/23, 16x
HIM-OD-1, M 111/23, 8x
| | object data | | fabric description | | archaeometry | | petrography | | |
| sample no |
M 111/23 |
| fabric type |
HIM-OD-1
|
| supposed site of production |
Himera |
| fabric previously published as |
HIM-REG - OD - 1 |
| sample taken |
September 29, 2009, by Stefano Vassallo, Soprintendenza Beni Culturali e Ambientali di Palermo |
| |
Context Data
|
| site of discovery |
Himera
Necropolis Ovest |
| registration code of context |
W4314 |
| registration code of object |
W 4314 |
| |
Object
|
| ware |
Opus Doliare |
| object form |
Pithos |
| surface description |
slipped
very pale brown, 10YR8/3 |
| | object data | | fabric description | | archaeometry | | petrography | | |
| |
Visual Examination of Fresh Break
|
| visual examination of fresh break |
reddish yellow, granular, some large dark brown and mid-sized white inclusions |
| colour of fresh break |
5YR6/6 |
| texture of fresh break |
granular |
| hardness |
hard |
| |
Observation Under the Binocular Stereoscope
(all lengths in mm)
|
| porosity |
5%; void form: channel;vughy; void length: 0.02-1 |
| inclusions |
20%, length: 0.02-2 |
| sorting |
unsorted |
| |
Inclusions
(all lengths in mm)
|
|
black iron oxide concretions |
infrequent, rounded, spherical, brownish black, 0.03-0.06 |
|
calciumcarbonate |
frequent, rounded, subspherical, white, 0.06-0.6 |
|
carbonate pseudomorphoses |
frequent, rounded, subelongate, white, 0.03-0.15 |
|
mica |
frequent, angular, spherical, white, 0.03 |
|
quartz |
infrequent, angular, spherical, clear, 0.3 |
|
reddish inclusions |
frequent, angular, subspherical, light red, 1-2 |
|
red iron oxide concretions |
infrequent, rounded, spherical, reddish brown;reddish brown, 0.03-0.06 |
| | object data | | fabric description | | archaeometry | | petrography | | |
| applied method for sample analysis |
thin section |
| analysis author |
Montana/Randazzo |
| | object data | | fabric description | | archaeometry | | petrography | | |
| sample number |
M 111/23 |
| inventory number |
W4314 |
| name of author |
Giuseppe Montana - Luciana Randazzo |
| institution of author |
Department of Earth and Marine Sciences (DiSTeM) - University of Palermo |
| contact information of author |
giuseppe.montana@unipa.it; luciana.randazzo@unipa.it |
| |
Temper Grains
|
| |
Microstructure
|
| areal distribution |
moderately homogeneous |
| packing (% area) |
low (3-10%) |
| size/granulometry (mm) |
prevalent:
very fine (0.04-0.1mm)
common:
medium (0.2-0.5mm)
sporadic:
fine (0.1-0.2mm), coarse (0.5-2mm)
|
| maximum grain size (mm) |
1 |
| sorting |
scarce-serial |
| roundness |
angular |
| |
Composition
|
| minerals |
prevalent: Monocrystalline Quartz
common: Polycrystalline Quartz, Muscovite
sporadic: Orthoclase, Plagioclase
rare: Accessory & Heavy Minerals (Iron oxides)
|
| rock fragments |
sporadic: Magmatic (plutonic) (Granitoid)
rare: Sedimentary (Sandstone)
|
| other compositional/textural features |
sporadic: Microfossils, Micritic Clots
|
| quartz grains |
angular |
| |
Groundmass
|
| |
Texture
|
| texture |
moderately homogeneous patchy: common |
| optical activity |
inactive |
| degree of sintering |
well sintered |
| |
Porosity
|
| voids/pores abundance (area) |
low (<10%) |
| voids/pores size |
prevalent: tiny (<0.01mm), small (0.01-0.1mm), medium (0.1-1mm)
|
| voids/pores orientation |
partial |
| voids/pores shape |
prevalent: irregular, cast
|
| |
Estimations from Microscopy/Interpretation
|
| |
Interpretation
|
| firing temperature |
well fired |
| refinement of raw clay |
acceptable |
| refinement of temper/clasts |
sieved natural sand |
| modelling technique/fabrication |
use of wheel |
Cite this page as: FACEM - http://facem.at/m-111-23
