FACEM
Provenance Studies on Ancient Pottery in the Mediterranean
BNAP-A-8, M 10/34, scale bar 0.15mm
BNAP-A-8, M 10/34, scale bar 2mm
BNAP-A-8, M 10/34, 25x
BNAP-A-8, M 10/34, 16x
BNAP-A-8, M 10/34, 8x
| | object data | | fabric description | | archaeometry | | petrography | | |
| sample no |
M 10/34 |
| fabric type |
BNAP-A-8
|
| supposed site of production |
Bay of Naples |
| sample taken |
July 2003, by Verena Gassner, Institute of Classical Archaeology, Vienna University |
| |
Context Data
|
| site of discovery |
Velia / Elea Fortifications, wall B, trench 5/98, unit of stratification 525/98 |
| registration code of context |
525/4/98 |
| registration code of object |
525/4/98-124 |
| |
Object
|
| ware |
Transport Amphorae |
| object form |
Amphora |
| object type |
Greco-Italic amphora, Gassner rim type 10 |
| chronology of object |
Greek-Hellenistic First quarter of the 2nd c. B.C. |
| fragmentation |
rim |
| surface description |
coarse pink, 7.5YR7/4 |

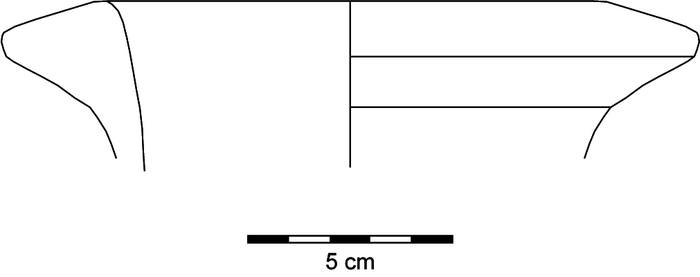

| drawing |
|
| | object data | | fabric description | | archaeometry | | petrography | | |
| |
Visual Examination of Fresh Break
|
| visual examination of fresh break |
reddish yellow, core: dark gray, granular; numerous fine to medium-sized white particles, some medium-sized to large dark brown inclusions, mica |
| colour of fresh break |
5YR6/8, core: 7.5YR 4/0 |
| texture of fresh break |
granular |
| hardness |
hard |
| |
Observation Under the Binocular Stereoscope
(all lengths in mm)
|
| porosity |
7.5%; void form: channel;vughy; void length: 0.025-0.5 |
| inclusions |
20%, length: 0.025-0.875 |
| sorting |
unsorted |
| |
Inclusions
(all lengths in mm)
|
|
black inclusions |
frequent, very angular, subelongate - subspherical, black, 0.025-0.5 |
|
calciumcarbonate |
frequent, rounded, spherical, white, 0.025-0.625 |
|
carbonate pseudomorphoses |
infrequent, rounded, spherical, white, 0.025-0.05 |
|
mica |
infrequent, angular, spherical, white, 0.025-0.25 |
|
more inclusions2 |
infrequent, very angular, subelongate - subspherical, light green, 0.025-0.375 |
|
quartz |
frequent, angular, subspherical, white, 0.025-0.875 |
|
reddish inclusions |
infrequent, subrounded, subspherical, rust coloured, 0.025-0.5 |
| | object data | | fabric description | | archaeometry | | petrography | | |
| applied method for sample analysis |
thin section and heavy mineral analysis |
| analysis author |
Roman Sauer |
| petrographic mineralogical type |
PG-C2a |
| | object data | | fabric description | | archaeometry | | petrography | | |
| sample number |
M 10/34 |
| name of author |
Roman Sauer |
| institution of author |
University of Applied Arts Vienna, Department of Archaeometry |
Cite this page as: FACEM - http://facem.at/m-10-34
